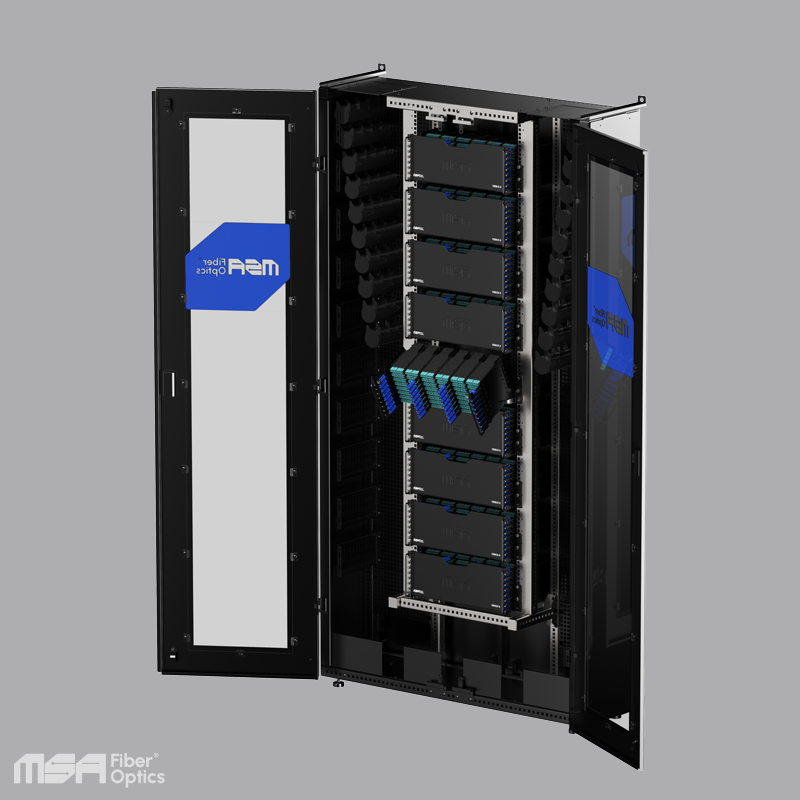

MSA VENUS Front Access Series
ETSI (ETS 300 119-3) Standard

MSA VENUS Front Access Series is:

  • A fully integrated and consolidated system
  • Designed for front-only access — no rear access required
  • Optimized for ease and speed of installation
  • Enables convenient maintenance and serviceability
  • Provides scalable architecture for future expansion
  • Uses uniform-length patch cords for simplified cabling and inventory
  • Delivers efficient space utilization through compact and rational design
  • ETSI (ETS 300 119-3) Standart

Capacity 1,920 LC ports (3,840 fibers) / 1,920 MTP ports 8 (15,360 fibers) / 1,920 MTP ports 12 (23,040 fibers)
Usable height 9 x 4U
Depth 300 mm
Width 1200 mm
Weight 220 kg
Color Black RAL 9005
Country of origin Israel

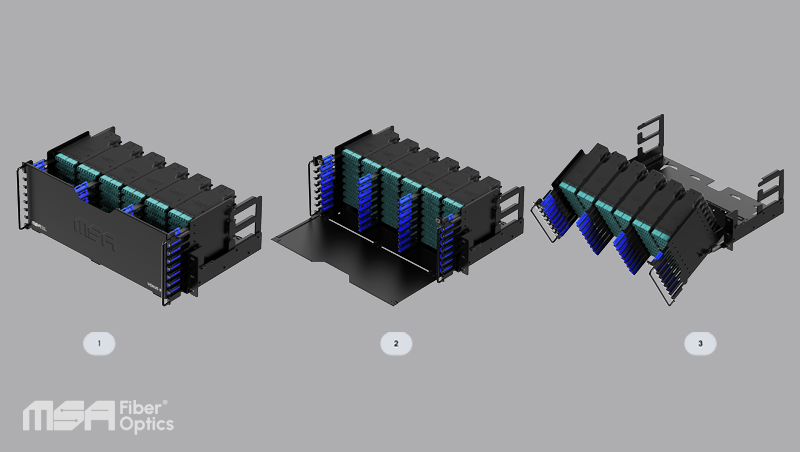

  • Unobstructed access to the internal volume of the cabinet
  • Modular configuration: allows for multiple cabinets to be connected back-to-back and/or in-line (side-by-side)
  • Standardized patch cord length (4 meters) — suitable for routing within a single cabinet or between cabinets connected in-line or back-to-back
  • Support for high-density optical cabling systems using the MTP interface

Capacity 192 LC ports (384 fibers) / 192 MTP 12 ports (2,304 fibers) / 192 MTP 8 ports (1,536 fibers)
Height 4U
Depth 290mm
Color Black RAL 9005
Country of origin Israel

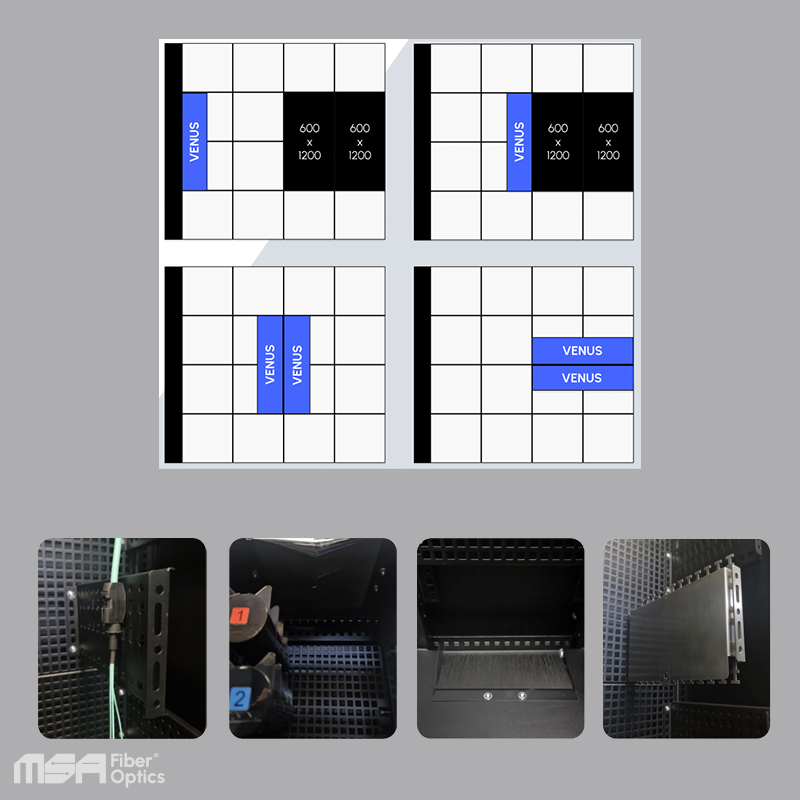

Cabinets and the Floor Plan

Cable Management Features:

  • Dual-Sided Cable Entry: Supports cable routing from both the top and bottom of the cabinet, enabling flexible installation in various network configurations.
  • High-Density Brush Entry Ports: Equipped with open-type dual brush cable entry systems at the top of the cabinet, allowing efficient and obstruction-free routing.
  • High Capacity: Each upper brush port supports the entry of up to 340 MTP trunk cables, ensuring compatibility with high-density fiber deployments.
  • Secure Trunk Cable Mounting: MTP CORE trunk cables can be reliably secured using integrated mounting brackets, designed for stability and ease of maintenance.
  • Universal Cable Compatibility: Accommodates all standard fiber optic cable types with dedicated fastening solutions for secure and strain-relieved installation.

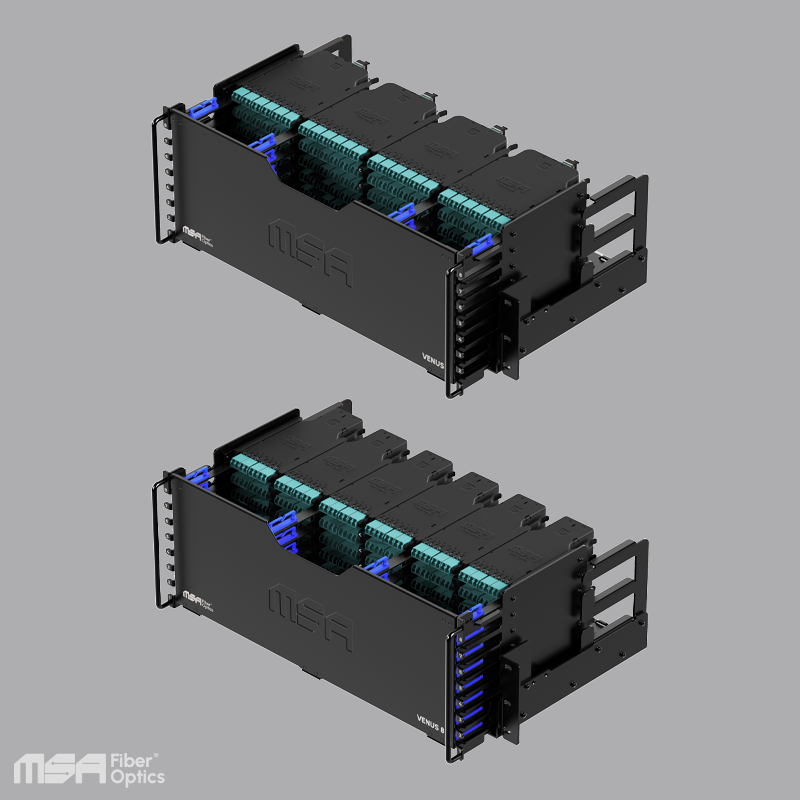

VENUS & VENUS 8
Optical Distribution Frames (ODF)
