Data Centre High-Density Fiber Optics System

MSA VENUS delivers exceptional connection density through its modular design. It simplifies plug-ins, adds, and changes of MTP, MPO, LC, … etc connectivity

It offers easy access to ports, features an integrated cable management system, and requires less installation space compared to conventional fiber optic cabling systems.

A core strength of the MSA VENUS system lies in its use of bend-insensitive optical fibers, which ensure high reliability and maximum port density. These fibers significantly reduce macrobend losses, even under challenging routing conditions, contributing to consistent, high-performance operation.

MSA VENUS are designed to support two types of optical links:

  • 12-fiber VENUS links
  • 8-fiber VENUS 8 links

The 12-fiber links are currently the most widely adopted configuration, ideal for high-speed data transmission applications.

The 8-fiber links offer maximum fiber utilization efficiency and are optimally suited for migration to higher data rates, supporting speeds of up to 1600 Gbps.

MSA VENUS — Scalable Fiber Infrastructure for the Future

MSA VENUS is a factory-assembled, plug-and-play fiber optic system built for speed, performance, and scalability. Whether you’re building a hyperscale data center or upgrading a SAN environment, VENUS delivers high-density connectivity with simplified installation and maintenance.

MSA VENUS — it is

  • Ultra-fast deployment with pre-terminated components
  • Reliable high-performance connections (≤ 0.35 dB insertion loss)
  • Designed for 40G–800G applications and beyond
  • Fully compliant with international standards (RoHS, REACH, IEC, TIA)
  • Safe, compact, and modular — perfect for space-limited IT environments

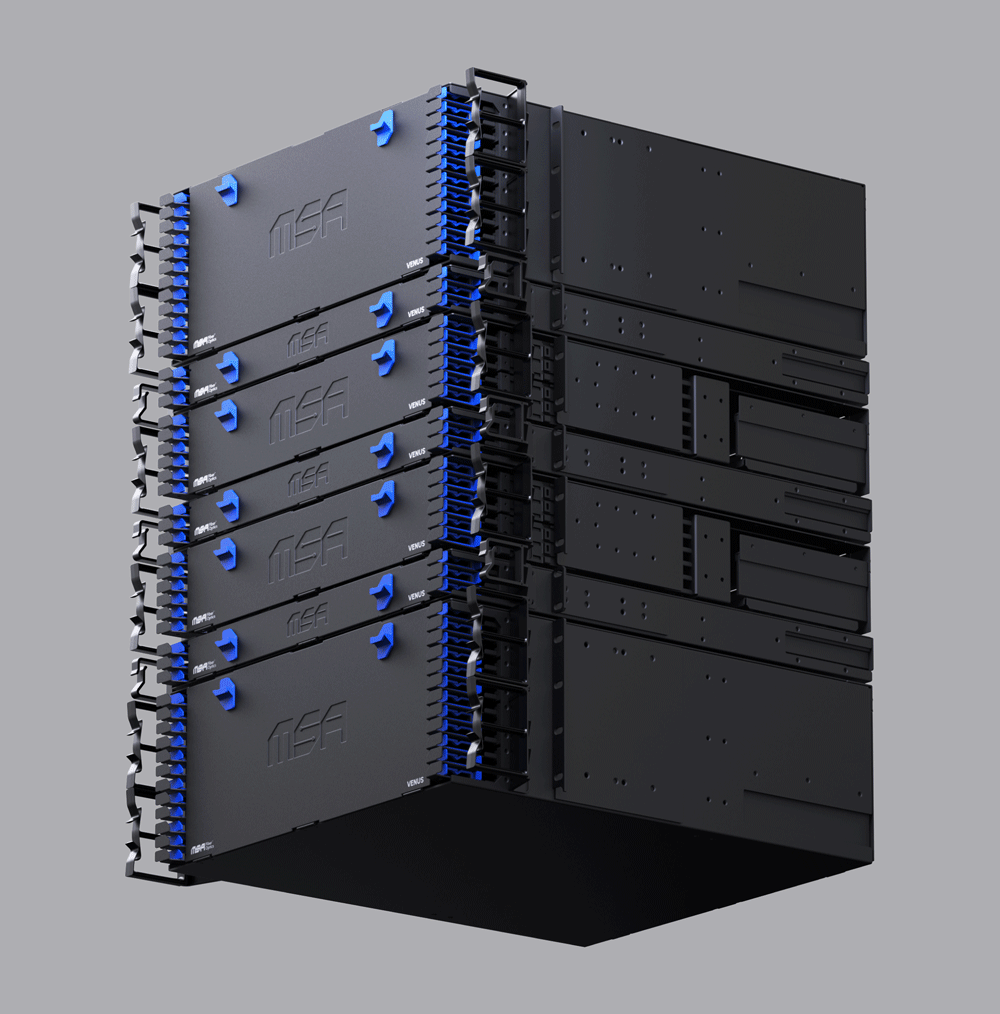

Core components include high-density enclosures, cassettes, trunk and breakout cables, and patch cords — all designed to work seamlessly together for high efficiency and uptime.

All MSA VENUS system components are factory-manufactured to guarantee native mechanical and optical compatibility, along with high, repeatable performance across the entire solution lifecycle.

The MSA VENUS modular system includes:

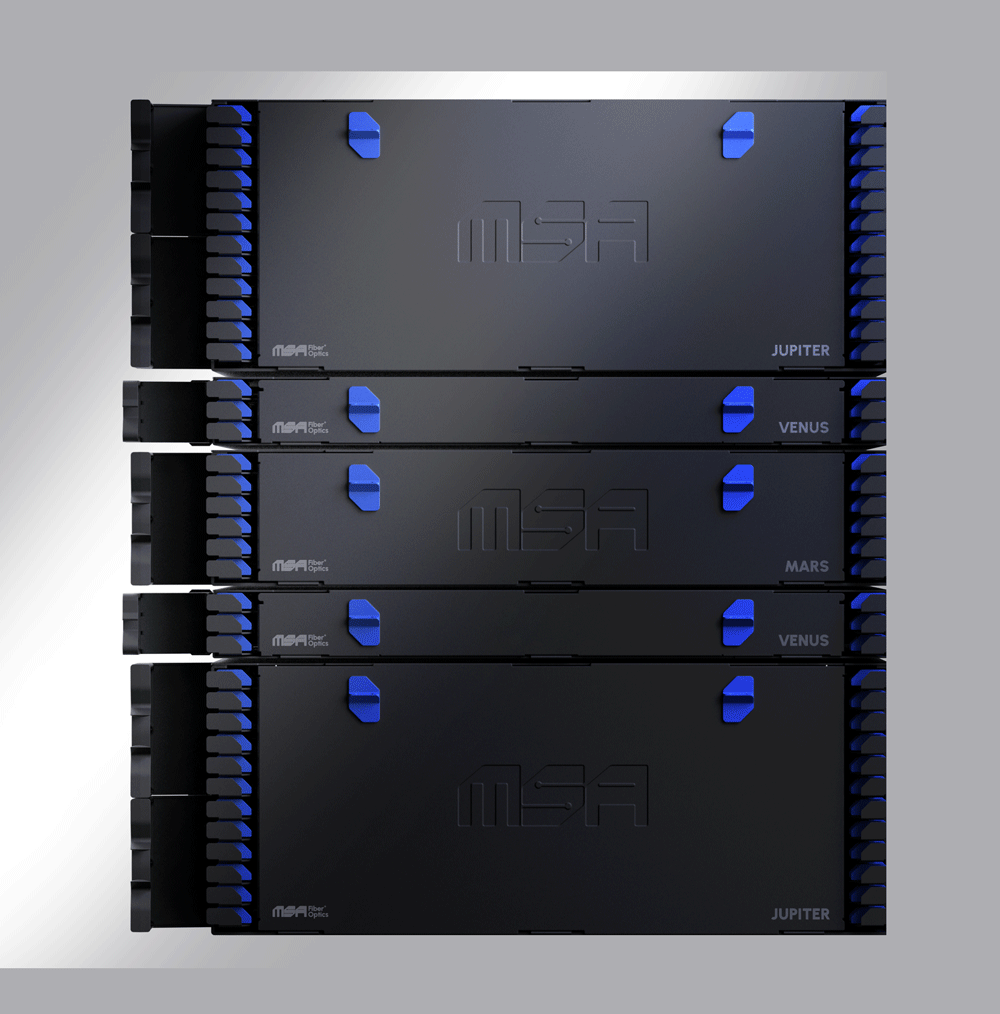

  • High-density cabinets and enclosures, compliant with EIA/ECA-310-E rack-mount standards
  • Optical patch panels (ODFs) with front access for tool-less maintenance and scalability
  • Pre-terminated optical cassette modules, designed for 8-, 12-, and 24-fiber MTP®/MPO interfaces, per IEC 61754-7 and OM3
  • Optical trunk cables, available in OM4, OM5, and OS2 grades, utilizing bend-insensitive fibers per ITU-T G.657.A1/A2 and IEC 60793-2-50
  • Fanout/breakout cables, supporting configurations from 8 to 144 fibers
  • Low-loss optical patch cords, built to IEC 61300-3-34 and Telcordia GR-326-CORE performance requirements

All components are:

  • RoHS 3 (EU 2015/863) and REACH compliant
  • Halogen-free (LSZH) for improved fire safety in confined IT environments
  • Rated for operating temperature from -10°C to +60°C
  • Designed to withstand up to 500 mating cycles without degradation of performance
  • Factory tested for insertion loss (≤ 0.35 dB) and return loss (≥ -60 dB for APC, ≥ -30 dB for UPC)
  • Available with optional UL 94V-0 flame-retardant enclosures

The MSA VENUS platform is optimized for mission-critical applications in data centers, SANs, and high-performance computing environments where density, reliability, and scalability are essential.
